Quick Details

  • Type: Fencing, Trellis & Gates
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: XM
  • Model Number: XM-palisade fence
  • Frame Material: iron or steel
  • Pressure Treated Wood Type: Nature
  • Frame Finishing: Powder Coated
  • Feature: Easily Assembled, Eco Friendly, Pressure Treated Timbers, Rot Proof, Waterproof
  • Product name: Galvanized and powder coating palisade fencing
  • Sample:: free
  • Certifications:: ISO,SGS,UV
  • Colour:: dark green,yellow,white,orange etc
  • Pale:: 60mm wide x 2mm thickness x 2.4m high
  • Post: 50mm x 50mm x 1.6mm thickness x 2.95m high
  • Rail: 50mm x 50mm x 4.0mm x 2.5m length (from post center to center)
  • Bolt:: M8 and M12
  • Main markets:: France, Brazil, Poland, Russia etc.
  • Application:: widely used in garden,factory,road,airport,greenbelt and so on

Packaging & Delivery

Packaging Details: 1.On steel pallets and Carton paper under the pacing belt for protecting the mesh panel.
Delivery Detail: 15 working days after receiving the deposit.
Heavy duty Galvanized steel palisade fencing for sale


Features and Uses:

Palisade fence is strong, durable and fulfils many demanding roles. It is regularly used around industrial units, civic amenities, schools and other such applications where security is a major concern.

The security level of palisade can be increased by increasing the height of the fence, increasing the number of pales per panel, increasing the thickness of pale, adding a concrete plinth.



Specifications:

Height above Ground meters

Nominal pale thickness (mm)

Post

Pails

Panel Size H/W

“D” Section

“W” Section:

1.50

3.00

2.50

102 * 44

45 *45* 6

1030*2500

1.80

3.00

2.50

102 * 44

45 *45* 6

1230*2500

2.10

3.00

2.50

102 * 44

45 *45* 6

1830*2500

2.40

3.00 or 3.50

2.50 or 3.00

102 * 44

45 *45* 6

2030*2500

3.00

3.50

3.00

102 * 44

45 *45* 6

2400*2500



Panel are in two sections:

“D” Section:





“W” Section:

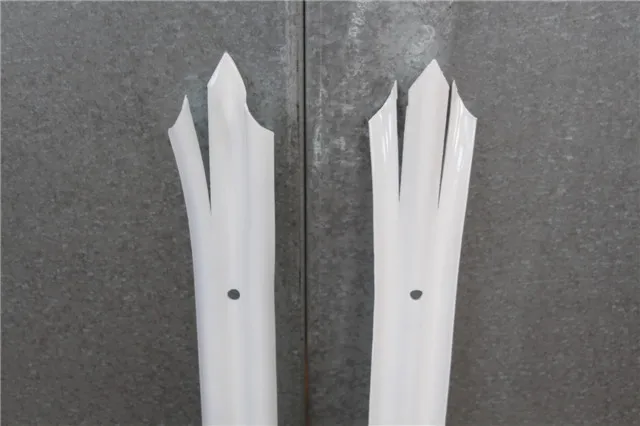

Palisade is offer in a choice of heads:

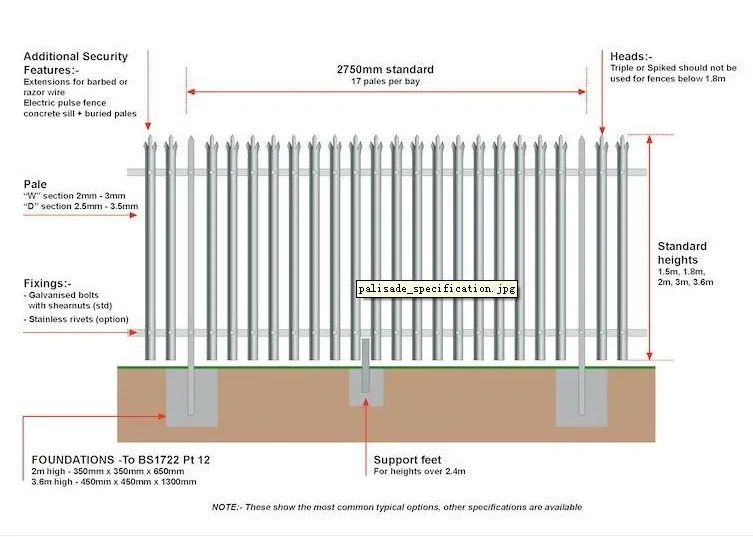

Our drawing below for you reference,and we can do the panel as your own drawings

Construction :

A standard panel is constructed from hot and cold rolled steel sections supplied for assembly on site. Panels consist of 17

vertical pales manufactured in "D" or "W" profile with a choice of tops. The pales are fixed to rolled steel angle horizontals

which are supported by 102 x 44 joist posts.

Connection:

Pale: 60mm wide x 2mm thickness x 2.4m high

Post: 50mm x 50mm x 1.6mm thickness x 2.95m high

Rail: 50mm x 50mm x 4.0mm thickness x 2.5m length (from post center to center)

Bolt: M8 and M12.

Finish: galvanized with PVC coating.





About us

Name of Factory:

Anping County Xiangming Wire Mesh Products Co.,Ltd

Address of Factory:

Lige Village Development Zone, Baoheng Road, Anping County, Hengshui City, Hebei Province, China

Business type:

Factory/Manufacturer/Exporter

Registered Capital:

10million

Factory Occupation Area(M²):

18000m2

Factory Operation Date at Current Location:

20 years

Main equipment:

Drawing machine; Welding machine; Bending machine; Angle grinder; Bench Drill machine; Carbon dioxide arc welding machine; Blow molding feet machine; Cutting machine; Powder coating workshop etc.

Main products:

Temporary fence, cattle yards panels, crowd pedestrian barriers, farm gates and other welded wire mesh fence etc

Markets:

Oceania, North America, Europe etc.

Annual Sales :

50million

Annual Volume of Export:

45million





Strong and kind team !

















Long time cooperation clients !













Our Services

1.Small sample is free and it can be ready with 3 days.

2.Update the production process for you every week.

3.Send the loading photos and details to you after loading.

4.More orders,more discounts!
