Quick Details

  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: XM
  • Model Number: XM-TB
  • Item: Flat/Claw/Cross Feet Heavy Duty Crowd Control Barrier
  • Material: Carbon steel
  • Panel Size: 2.1 x 1.1m,2.2*1.1m,2.5*1.2mm, etc
  • Zinc Coating: 500g/m2
  • Infill Pickets: 12mm, 14mm, 16m, 20mm, 25mm, etc
  • Spacing: 60mm, 100mm, 190mm, 200mm, etc
  • Feet: Bridge/Cross/Claw/Flat feet
  • Suface Treatment: Full hot dipped galvanized / PVC Coated
  • Main Market: Austrailia, Canada, Newzland and other Erupean Countries

Packaging & Delivery

Packaging Details: In bulk or on steel pallet
Delivery Detail: within 25 days

Flat/Claw/Cross Feet Heavy Duty Crowd Control Barrier

Product Description

Cross Feet Temporary Pedestrian Barricade are fully hot dipped galvanized after welding. Each barrier is completely dipped in a zinc bath after manufacture. This is the best galvanizing process, which means the barrier fence will be far more weather resistant and durable, and will last much longer than other Crowd Control Barriers on the market.

Cross Feet Temporary Pedestrian Barricade incorporate a specially designed locking system, that is both easy to use and very secure. The barriers are light and easy to handle, while being strong and robust at the same time.



AU and New Zealand Standard Specification:

Panel Size

2200mm(L) x 1100mm(H)

Frame

25mm O.D.

Infill Pickets

20mm O.D.

Spacing

200mm (popular), 60mm, 100mm, 190mm

Wall Thickness

1.2mm, 1.5mm, 2.0mm

Weight

18.5kgs

Surface

Treatment

Hot Dipped Galvanized, zinc coating: 500g/m2

Feet

Flat/detached Feet – removable, 600x60x6mm, or as required



UK Standard Specification:

Panel Size

2300mm/2500mm (L) x 1100mm (H)

Weight

20Kg

Infill Pickets

12.6mm O.D.

Frame

38.1mm O.D.

Wall thickness

1.5mm

Hook & Eyes

Bottom one is 470mm and Top one is 870mm

Surface

Treatment

Galvanized only, zinc coating: 500g/m2

Galvanized then color coated (any RAL series color)

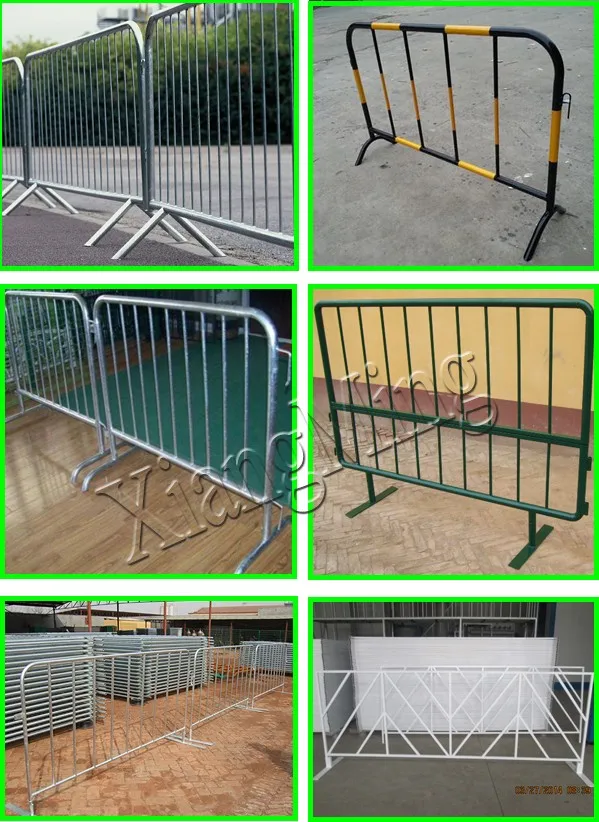

Different barrier styles:
Barriers Feet/Base

1. Flat-style feet, is the ideal choice at special events or venues that require funneling crowds or traffic in parallel lines.

  • Minimizes the tripping hazard and vehicle tires roll easily over the feett without damage the barricade.
  • The flat feet distribute weight evenly and rubber grommets provide added protection for sensitive floors.
  • Two holes in each foot allow it to be anchored to the ground.

2.  Bridge-style feet design provides

  • maximum stability for the barrier , thus making the product an ideal choice for use on grass, soft or uneven surfaces.
  • The Bridge Foot provides the best resistance to pushing by crowds, so if you are planning a parade, rally or concert, choose this  for your sensitive crowd control needs.

3. Cross-style feet:

  • Its feet are welded with the panel, so it’s more convenient to install.
  • provides maximum stability for the barrier , thus making the product an ideal choice for use on grass, soft or uneven surfaces.

Surface Treatment

A) iron tube + cut + bend + punch + polish + weld + polish + hot galvanized

B) hot galvanized tube + cut + bend + punch + polish + weld + polish + paint (weld point)



1. Full hot dipped Galvanized temporary pedestrian barricade:

2. PVC/Powder coated temporary pedestrian barricade:

3. Customized temporary pedestrian barricade are also available:

Quality Control

All these measurement photos will be sent to you before shipment.

Package

These temporary pedestrian barricade will be tied up then put on steel pallet or on bulk to save your cost.
